1. Learning Outcome
- Learn about Large Language Models (LLMs), their installation, access through HTTP API, the Ollama framework, etc.
- Introduction of Retrieval-Augmented Generation (RAG)
- Learn about the Data Ingestion Pipeline for the Qdrant vector database
- Learn about the RAG Pipeline
- Access the prototype using audio-based input/output (audio bot).
- Audio bot using speech-to-text and text-to-speech
- Making Qdrant client for making queries
- Creating context using documents retrieved from the Qdrant database
- Using Llama 3.2 as a Large Language Model (LLM) using Ollama and Langchain framework
- Create a prompt template using instruction, and context, and make a query using the template and
langchain
- Using Llama to generate the answer to the question using the given context
2. Large Language Model

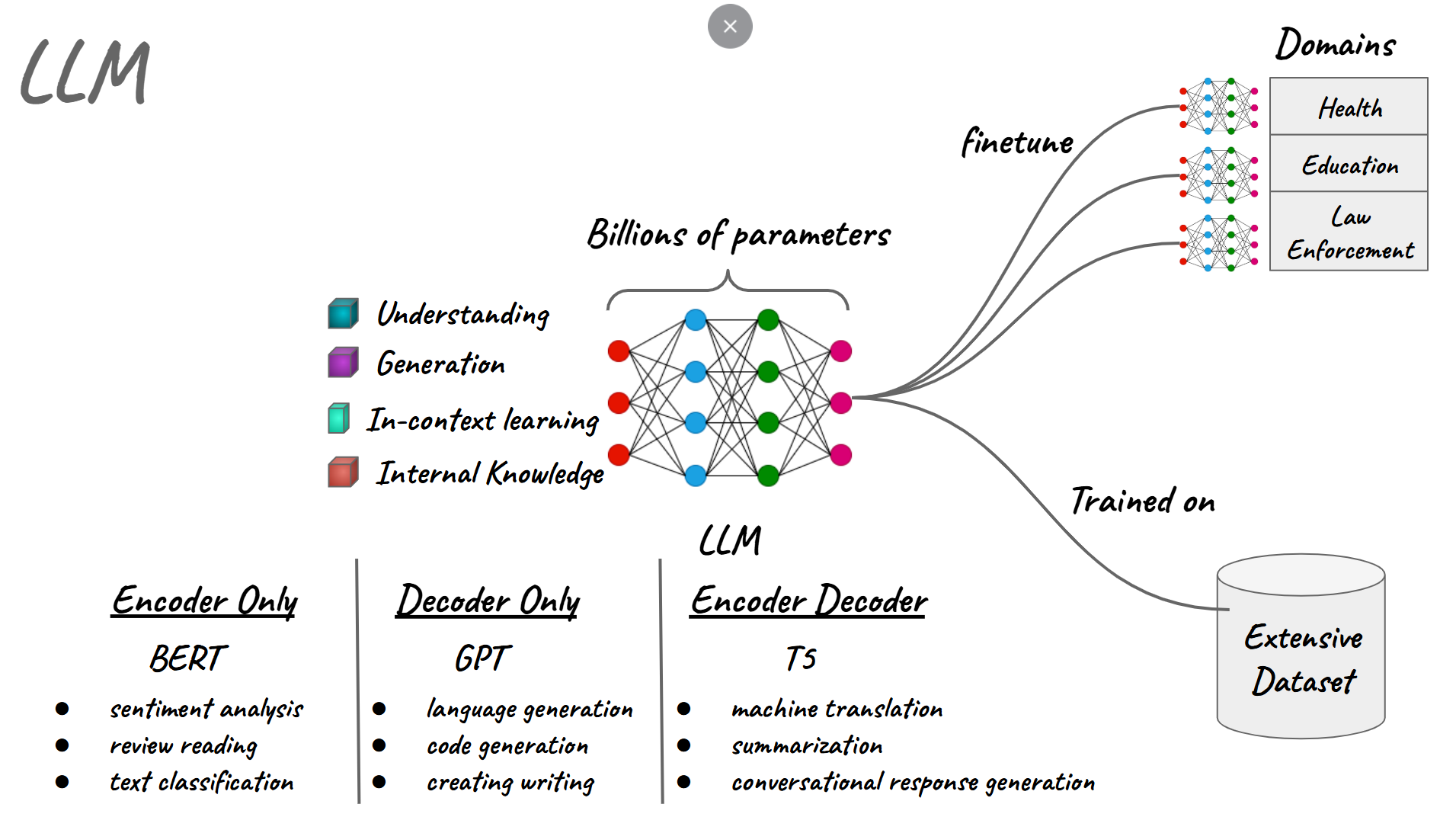

Large Language Model (LLM) is an artificial intelligence (AI) model trained to comprehend and produce language similar to a human’s. It can learn linguistic structures, relationships, and patterns since it has been trained on enormous volumes of text data. Transformer architecture is often the foundation of large language models, allowing them to
Large Language Model (LLM) is an artificial intelligence (AI) model trained to comprehend and produce language similar to a human’s. It can learn linguistic structures, relationships, and patterns since it has been trained on enormous volumes of text data. Transformer architecture is often the foundation of large language models, allowing them to
- process sequential data that makes it suitable for tasks like text generation, translation, and question-answering)
- learn contextual relationships such as word meanings, syntax, and semantics.
- generate human-like language, i.e. produce coherent, context-specific text that resembles human-generated content
Some key characteristics of large language models include:
- Trained on vast training data:
- Scalability: They can handle long sequences and complex tasks.
- Parallel processing
Some of the popular examples of Large Language Models are BERT (Bidirectional Encoder Representations from Transformers), RoBERTa (Robustly Optimized BERT Pretraining Approach), XLNet, T5 (Text-to-Text Transfer Transformer), Llama, etc.
Some of the popular use cases are:
- Language Translation
- Text summarization
- Sentiment analysis
- Chatbots and virtual assistants
- Question answering
- Content generation
Major concerns regarding LLMs are
- Data bias: LLMs have the potential to reinforce biases found in the training data.
- Interpretability: It can be difficult to comprehend the decision-making process of an LLM.
- Security: Adversarial attacks can target LLMs.
3.1 Llama
Llama is an open-source AI model you can fine-tune, distill, and deploy anywhere. Current versions are available in three flavors:
- Llama 3.1: With Multilingual capability and available in two versions 1) 8B with 8 billion parameters and 2) 405B with 405 billion parameters
- Llama 3.2: Lightweight and Multimodal and available in 1) Lightweight 1B and 3B 2) Multimodal 11B and 90B
- Llama 3.3: Multilingual with 70B parameters
In the current prototype, I have used Llama 3.2.
3.2 Install, run, and different ways to access Llama
Please refer to my separate post on this topic, Install, run, and access Llama using Ollama.
3. Retrieval-Augmented Generation (RAG)
Large language models are locked in time. It has learned the knowledge that was available till the time when it was being trained and released. These models are trained on Internet-scale open data. So when you ask general questions, it would give very good answers, but it may fail to answer or hallucinate if you go very specific to your personal or enterprise data. The reason is that it usually does not have the right context of your requirements that are very specific to your application.
Retrieval-augmented generation (RAG) combines the strength of generative AI and retrieval techniques. It helps in providing the right context for the LLM along with the question being asked. This way we get the LLM to generate more accurate and relevant content. This is a cost-effective way to improve the output of LLMs without retraining them. The following diagram depicts the RAG architecture:

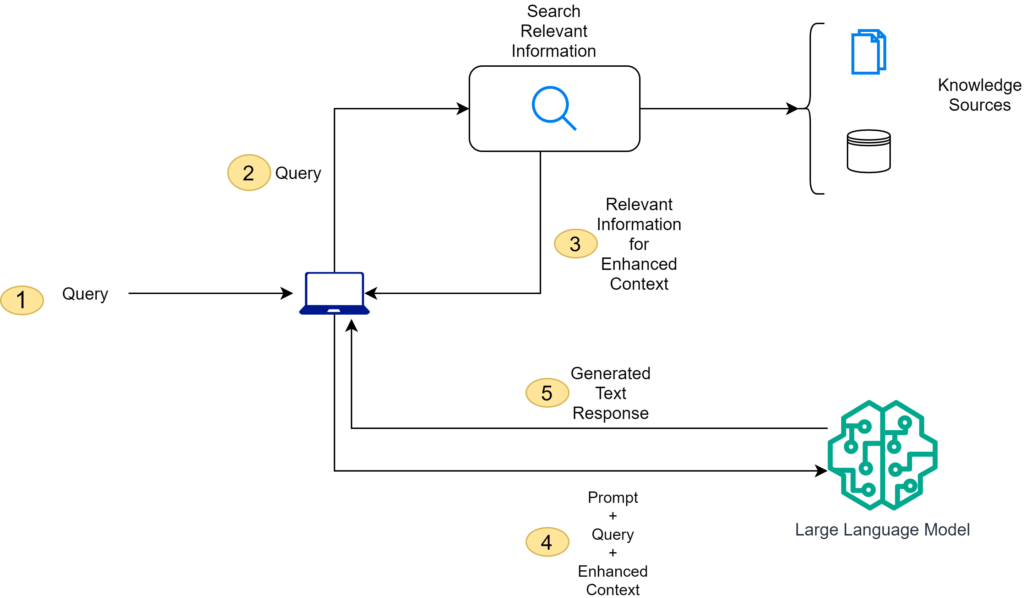

Fig1: Conceptual flow of using RAG with LLM
There are two primary components of the RAG:
- Retrieval: This component is responsible for searching and retrieving relevant information related to the user’s query from various knowledge sources such as documents, articles, databases, etc.
- Generation: This component does an excellent job of crafting coherent and contextually rich responses to user queries.
A question submitted by the user is routed to the retrieval component. Using the embedding model, the retrieval component converts the query text to the embedding vector. After that, it looks through the vector database to locate a small number of vectors that match the query text and satisfy the threshold requirements for the similarity score and distance metric. These vectors are transformed back to the text and used as the context. This context, along with the prompt and query, is put in the prompt template and sent to the LLM. LLM returns the generated text that is more correct and relevant to the user’s query.
4. RAG (Data Ingestion Pipeline)
In order for the retrieval component to have a searchable index of preprocessed data, we must first build a data input pipeline. The following diagram in fig2 depicts the data ingestion pipeline. Knowledge sources can be web pages, text documents, pdf documents, etc. Texts need to be extracted from these sources. I am using PDF documents as the only knowledge source for this prototype.
- Text Extraction: To extract the text from the PDF, various Python libraries can be used, such as
PyPDF2
,pdf2txt
,PDFMiner
, etc. If PDF is scanned PDF, libraries such asunstructured
,pdf2image
, andpytesseract
can be utilized. The quality of the text can be maintained by performing cleanups such as removing extraneous characters, fixing formatting issues, whitespace, special characters, punctuation, spell checking, etc. Language detection may also be required if knowledge sources can have text coming in multiple languages, or a single document may contain multiple languages. - Handling Multiple Pages: Maintaining the context across pages is important. It is recommended that the document be segmented into logical units, such as paragraphs or sections, to preserve the context. Extracting metadata such as document titles, authors, page numbers, creation dates, etc., is crucial for improving searchability and answering user queries.

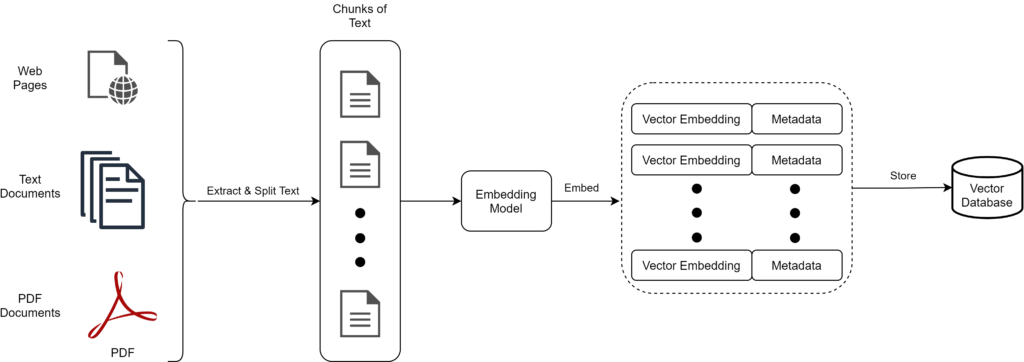

Fig2: RAG data ingestion pipeline
Note: I have manually downloaded the PDFs of all the chapters of the book “Democratic Politics” of class IX of the NCERT curriculum. These PDFs will be the knowledge source for our application.
4.1 Implementation step by step
Step 1: Install the necessary libraries
pip install pdfminer.six
pip install langchain-ollama
Imports:
from langchain_community.document_loaders import PDFMinerLoader
from langchain.text_splitter import CharacterTextSplitter
from qdrant_client import QdrantClient
Step 2: Load the pdf file and extract the text from it
loader = PDFMinerLoader(path + "/" + file_name)
pdf_content = loader.load()
Step 3: Split the text into smaller chunks with overlap
CHUNK_SIZE = 1000 # chunk size not greater than 1000 chars
CHUNK_OVERLAP = 30 # a bit of overlap is required for continued context
text_splitter = CharacterTextSplitter(chunk_size=CHUNK_SIZE, chunk_overlap=CHUNK_OVERLAP)
docs = text_splitter.split_documents(pdf_content)
# Make a list of split docs
documents = []
for doc in docs:
documents.append(doc.page_content)
Step 4: Embed and store the documents in the vector database
FastEmbed
is a lightweight, fast Python library built for embedding generation. Qdrant vector database uses this embedding library by default. Following is the code snippet for inserting in the vector database.
# 3. Create vectordatabase(qdrant) client
qdrant_client = QdrantClient(url="http://localhost:6333")
# 4. Add document chunks in vectordb
qdrant_client.add(
collection_name="ix-sst-ncert-democratic-politics",
documents=documents,
#metadata=metadata,
#ids=ids
)
Step 5: Making a sample query
# 5. Make a query from the vectordb(qdrant)
search_results = qdrant_client.query(
collection_name="ix-sst-ncert-democratic-politics",
query_text="What is democracy?"
)
for search_result in search_results:
print(search_result.document, search_result.score)
4.2 Complete Code data_ingestion.py
###############################################################
# Data ingestion pipeline
# 1. Taking the input pdf file
# 2. Extracting the content
# 3. Divide into chunks
# 4. Use embeddings model to convet to the embedding vector
# 5. Store the embedding vectors to the qdrant (vector database)
################################################################
import os
from langchain_community.document_loaders import PDFMinerLoader
from langchain.text_splitter import CharacterTextSplitter
from qdrant_client import QdrantClient
path = "ix-sst-ncert-democratic-politics"
filenames = next(os.walk(path))[2]
for i, file_name in enumerate(filenames):
print(f"Data ingestion for the chapter: {i}")
# 1. Load the pdf document and extract text from it
loader = PDFMinerLoader(path + "/" + file_name)
pdf_content = loader.load()
print(pdf_content)
# 2. Split the text into small chunks
CHUNK_SIZE = 1000 # chunk size not greater than 1000 chars
CHUNK_OVERLAP = 30 # a bit of overlap is required for continued context
text_splitter = CharacterTextSplitter(chunk_size=CHUNK_SIZE, chunk_overlap=CHUNK_OVERLAP)
docs = text_splitter.split_documents(pdf_content)
# Make a list of split docs
documents = []
for doc in docs:
documents.append(doc.page_content)
# 3. Create vectordatabase(qdrant) client
qdrant_client = QdrantClient(url="http://localhost:6333")
# 4. Add document chunks in vectordb
qdrant_client.add(
collection_name="ix-sst-ncert-democratic-politics",
documents=documents,
#metadata=metadata,
#ids=ids
)
# 5. Make a query from the vectordb(qdrant)
search_results = qdrant_client.query(
collection_name="ix-sst-ncert-democratic-politics",
query_text="What is democracy?"
)
for search_result in search_results:
print(search_result.document, search_result.score)
5. RAG (Information Retrieval and Generation) – Audio Bot
I am making an audio bot that will answer questions from the chapters of the book “Democratic Politics” of class IX of the NCERT(India) curriculum. If you want to learn about making an audio bot, you can read my article on the topic “Making a talking bot using Llama3.2:1b running on Raspberry Pi 4 Model-B 4GB“.
5.1 Audio Bot Implementation

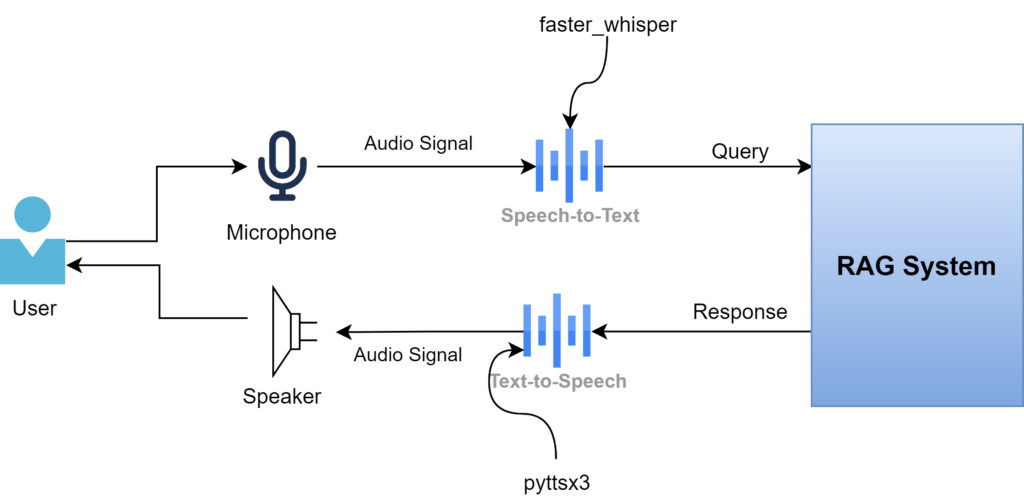

The following diagram depicts the overall flow of the audio bot and how it interacts with the RAG system. A user interacts with the audio bot using the microphone. The microphone captures the speech audio signal and passes it on to the speech-to-text library (I am using faster_whisper) which in turn converts to a text query that is in turn passed on to the RAG system as a query. When the RAG system comes up with the response text, this text is passed on to the text-to-speech library (I am using pyttsx3) that in turn converts text to audio which is then played by the speaker so the user can listen to the response.

5.1.1 Recording Audio from Microphone
I have a detailed blog on this topic. Please refer: How to Record, Save and Play Audio in Python?
5.1.2 Speech-to-Text
faster-whisper
is a reimplementation of OpenAI’s Whisper model using CTranslate2
, which is a fast inference engine for Transformer models.
Installation: pip install faster-whisper
Save the following code in Python file say "speech-to-text.py"
and run python speech-to-text.py
from faster_whisper import WhisperModel
model_size = "small.en"
model = WhisperModel(model_size, device="cpu",
compute_type="int8")
# Transcribe
transcription = model.transcribe(
audio="basic_output1.wav",
language="en",
)
seg_text = ''
for segment in transcription[0]:
seg_text = segment.text
print(seg_text)
Sample input audio file:
Output text: “Please ask me something. I’m listening now”
5.1.3 Text-to-Speech
The best offline text-to-speech library that works on resource-constrained devices is “pyttsx3“.
Installation: pip install pyttsx3
Save the following code in a Python file say "text-to-speech.py"
and run python text-to-speech.py
Code Snippet:
import pyttsx3
engine = pyttsx3.init()
engine.setProperty('volume', 1)
engine.setProperty('rate', 130)
voices = engine.getProperty('voices')
engine.setProperty('voice', voices[1].id)
engine.setProperty('voice', 'english+f3')
text_to_speak = "I got your question. Please bear " \
"with me while I retrieve the answer."
engine.say(text_to_speak)
# Folloing is the optional line: If you want
# also to save audio file
engine.save_to_file(text_to_speak, 'speech.wav')
engine.runAndWait()
Sample input text: “I got your question. Please bear with me while I retrieve the answer.”
5.1.4 Play Audio on the Speaker
I have a detailed blog on this topic. Please refer: How to Record, Save and Play Audio in Python?
5.2 RAG (Generation) using LLM (Llama3.2)
Following code snippet makes a query to the qdrant, retrieves relevant documents, selects few documents based on the similarity score.
search_results = qdrant_client.query(
collection_name="ix-sst-ncert-democratic-politics",
query_text=query
)
contaxt = ""
for search_result in search_results:
if search_result.score >= 0.7:
contaxt + search_result.document
The following code snippet creates a template, the template is used to create the prompt, create a reference to the llama model, chain (langchain
pipeline for executing the query) is created using prompt and model, and finally chain is invoked to execute the query to get the response formed by LLM using the retrieved context.
# 4. Using LLM for forming the answer
template = """Instruction: {instruction}
Contaxt: {contaxt}
Query: {query}
"""
prompt = ChatPromptTemplate.from_template(template)
model = OllamaLLM(model="llama3.2") # Using llama3.2 as llm model
chain = prompt | model
bot_response = chain.invoke({"instruction": "Answer the question based on the context below. If you cannot answer the question with the given context, answer with \"I don't know.\"",
"contaxt": contaxt,
"query": query
})
5.3 Complete Code audiobot.py
Following is the code snippet for the audio bot. Save the file as audiobot.py
import pyaudio
import wave
import pyttsx3
from qdrant_client import QdrantClient
from langchain_ollama.llms import OllamaLLM
from langchain_core.prompts import ChatPromptTemplate
from faster_whisper import WhisperModel
# Load the Speech to Text Model (faster-whisper: pip install faster-whisper)
whishper_model_size = "small.en"
whishper_model = WhisperModel(whishper_model_size, device="cpu",
compute_type="int8")
CHUNK = 512
FORMAT = pyaudio.paInt16 #paInt8
CHANNELS = 1
RATE = 44100 #sample rate
RECORD_SECONDS = 7
WAVE_OUTPUT_FILENAME = "pyaudio-output.wav"
def speak(text_to_speak):
engine = pyttsx3.init()
engine.setProperty('volume', 1)
engine.setProperty('rate', 130)
voices = engine.getProperty('voices')
engine.setProperty('voice', voices[1].id)
engine.setProperty('voice', 'english+f3')
engine.say(text_to_speak)
engine.runAndWait()
speak("I am an AI bot. I have learned the book \"democratic politics\" of class 9 published by N C E R T. You can ask me questions from this book.")
while True:
speak("I am listening now for you question.")
p = pyaudio.PyAudio()
stream = p.open(format=FORMAT,
channels=CHANNELS,
rate=RATE,
input=True,
frames_per_buffer=CHUNK) #buffer
print("* recording")
frames = []
for i in range(0, int(RATE / CHUNK * RECORD_SECONDS)):
data = stream.read(CHUNK)
frames.append(data) # 2 bytes(16 bits) per channel
stream.stop_stream()
stream.close()
p.terminate()
wf = wave.open(WAVE_OUTPUT_FILENAME, 'wb')
wf.setnchannels(CHANNELS)
wf.setsampwidth(p.get_sample_size(FORMAT))
wf.setframerate(RATE)
wf.writeframes(b''.join(frames))
wf.close()
# Transcribe
transcription = whishper_model.transcribe(
audio=WAVE_OUTPUT_FILENAME,
language="en",
)
seg_text = ''
for segment in transcription[0]:
seg_text = segment.text
print(f'\nUser: {seg_text}')
if seg_text == '':
speak("Probably you did not say anything.")
continue
else:
text_to_speak = "I got your question. Please bear with me " \
+ "while I retrieve about the answer."
speak(text_to_speak)
# 1. Create vector database(qdrant) client
qdrant_client = QdrantClient(url="http://localhost:6333")
# 2. Make a query to the vectordb (qdrant)
#query = "explain democracy in estonia?"
query = seg_text
search_results = qdrant_client.query(
collection_name="ix-sst-ncert-democratic-politics",
query_text=query
)
context = ""
no_of_docs = 2
count = 1
for search_result in search_results:
if search_result.score >= 0.8:
print(f"Retrieved document: {search_result.document}, Similarity score: {search_result.score}")
context = context + search_result.document
if count >= no_of_docs:
break
count = count + 1
#print(f"Retrieved Context: {context}")
if context == "":
print("Context is blank. Could not find any relevant information in the given sources.")
speak("I did not find anything in the book about the question.")
continue
# 4. Using LLM for forming the answer
template = """Instruction: {instruction}
Context: {context}
Query: {query}
"""
prompt = ChatPromptTemplate.from_template(template)
model = OllamaLLM(model="llama3.2") # Using llama3.2 as llm model
chain = prompt | model
bot_response = chain.invoke({"instruction": "Answer the question based on the context below. If you cannot answer the question with the given context, answer with \"I don't know.\"",
"context": context,
"query": query
})
print(f'\nBot: {bot_response}')
speak(bot_response)
6. Libraries Used
Following is the list of libraries used in the prototype implementation. These can be installed from the Python pip command.
- qdrant-client
- pdfminer.six
- fastembed
- pyaudio
- pyttsx3
- langchain-ollama
- faster-whisper
7. Steps
- Create env
python -m venv env1
- Activate using the
activate command in env1\Scripts\activate
if on Windows. Activate command is there in thebin
directory on the Linux system. python -m pip install -r requirements.txt
python data_ingestion.py
python audiobot.py
10. My Conversation with the Audio Bot
9. Further Improvement
In the current prototype, the chunk size is of fixed length, CHUNK_SIZE = 1000 and CHUNK_OVERLAP = 30. For further improvement, the document can be split into logical units, such as paragraphs/sections, to maintain a better context.
10. References
- A Practical Approach to Retrieval Augmented Generation Systems by Mehdi Allahyari and Angelina Yang
- Install, run, and access Llama using Ollama. – link
- How to Record, Save, and Play Audio in Python? – link
- Making a talking bot using Llama3.2:1b running on Raspberry Pi 4 Model-B 4GB – link
fastembed
library – link- Qdrant – link
- pyttsx3 – link
